24000 bpm Aseptic Cold Filling Machine For Beverage Drinks
Aseptic Cold Filling Machine Suitable For 186 To 325mm Height
Bottle

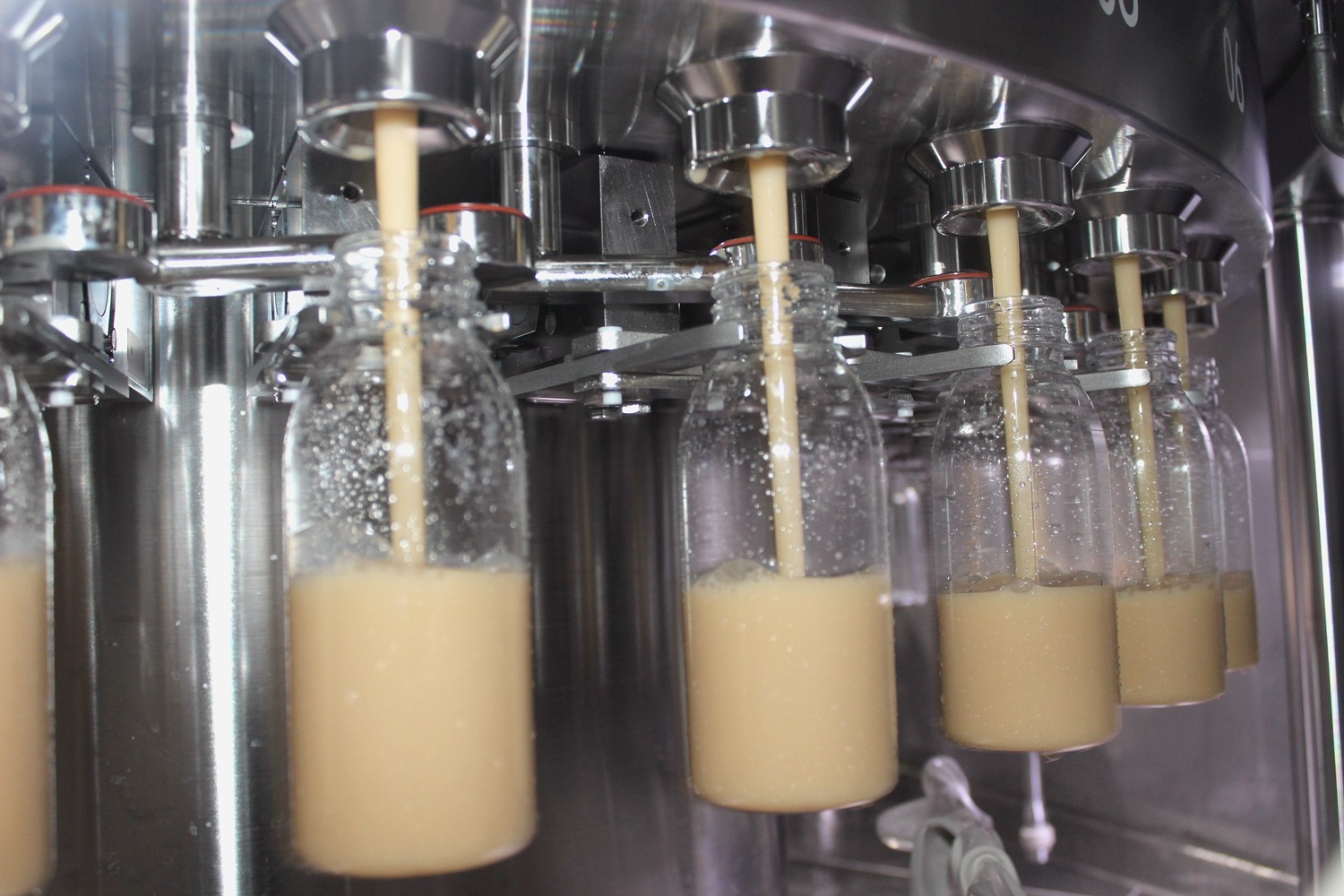

PET bottled beverage aseptic cold filling machine
Aseptic cold filling production line adopts aseptic isolation
technology to ensure the sterilization of filling materials,
packaging environment and packaging containers. The bottle caps are
sterilized using a reliable sterilization method to ensure the
sterility of the empty caps.
The quantitative measurement of the patented filling valve adopts
the international advanced electronic weighing system, which
greatly improves the filling accuracy and leads the field of
aseptic filling. PROFIBUS bus control technology is adopted to
realize communication and full-line control between each machine,
online display of full-line operation status and fault alarm,
greatly improving the level of automatic control and reducing the
possibility of human error operation.
Specifications of Bottled Water Filling Machine
Model | Number of Bottle Dumping Clip | Number of Bottle Rinsing Clip | Number of Filling Valve | Number of Capping Head | Capacity (BPH) | Bottle Size | Outline Dimensions (mm) | Quality (Kg) | Remark |
Diameter (mm) | Height (mm) | Volume (ml) |
GWJX06A | 24 | 24 | 24 | 8 | 2500(2.5L) | Φ60-Φ115 | 180-315 | 350-1500 | 7100x 2860x 3000 | 10000 | Split Type |
GWJX15A | 72 | 60 | 60 | 15 | 24000(500ml) | Φ60-Φ96 | 180-315 | 350-1500 | 11900 x8500x 3200 | 25000 | Split Type |
Features
Our aseptic cold filling line is modularly constructed for great
flexibility. It combines the dumping machine, rinser, filler and
capper into one unit, and the part above the table-board is full
closed by shielding can.
The imported electronic weighing sensor of filling valve ensures
high measuring precision and makes it convenient to adjust product
variety.
Automatic control of CIP and SIP operations is realized.
The inside of of pipeline and valve in contact with material meets
the related sanitation standard.
Certificates
1. Our beverage machinery is approved as qualified products for
seven years by Chinese beverage industry association.
2. Our company is approved as excellent supplier of filling
equipment four times by Chinese beverage industry association.
3. Our company is entitled "Star Enterprise" by Chinese food and
packaging machinery industry association.
4. Our company is approved as the enterprise technical center of
Hebei Province.
5. Our company obtains ISO9001:2000 International Quality
Management System Certification.
6. Our company is awarded as demonstration enterprise of national
CAD application engineering by Ministry of Science and Technology
of China.
7. All our products are awarded as CE certification.
8. Our company becomes the vice chairman of Chinese food and
packaging machinery industry association.
FAQ
Q: What are the Primary Products of Your Company?
A: Our products mainly include water production line, juice
production line, tea production line, water filling machine, juice
filling machine, tea filling machine, and more.
Q: Where is Your Beverage Machinery Applied to?
A: Our beverage production lines are extensively used for packaging
of water, fruit juice, tea drinks, milk beverage, juice with
grains, sodas, protein beverages, energy drinks, and more.
Q: What are the Properties of Your Beverage Production Lines?
A: Our beverage machinery adopts automatic operation system which
greatly improves the performance and productivity of our packaging
machines. They have properties of multifunction, standard design,
modularization, digital control system, good compatibility, high
accuracy, flexibility, and high working efficiency.
All these measures together enable us to provide high quality
carbonated beverage production lines, can filling machines, juice
production lines, tea filling machines, etc, at competitive prices.
Q: Do Your Water Production Lines Meet Environmental Protection
Requirements?
A: Our water production lines are eco-friendly and energy-saving.
They adopt advanced environmental protection technologies from
Germany and Italy. All production procedures quite meet the
standards of ISO9001: 2000.
Q: Which Countries are Your Beverage Machinery Sold to?
A: Our products are widely exported to U.S.A, Russia, England,
Canada, Japan, Egypt, Mexico, South Africa, North Korea, Indonesia,
Mongolia, Malaysia, Dominica, Nigeria, Libya, Turkey, Kazakstan,
Iran, Yemen, Sudan, Vietnam, Bengal, Burma, Serbia, Macedonia,
Lebanon, Congo, Syria, Venezuela, Iraq, Saudi Arabia, and Kenya.
Q: What Kind of After-sale Services does Your Company Provide?
A: Installation guides, device debugging and technical trainings
are offered to our global customers to help them make full use of
our water production lines, tea filling machines, beverage
production lines, and other beverage machinery.
